The Right Tools for the Job

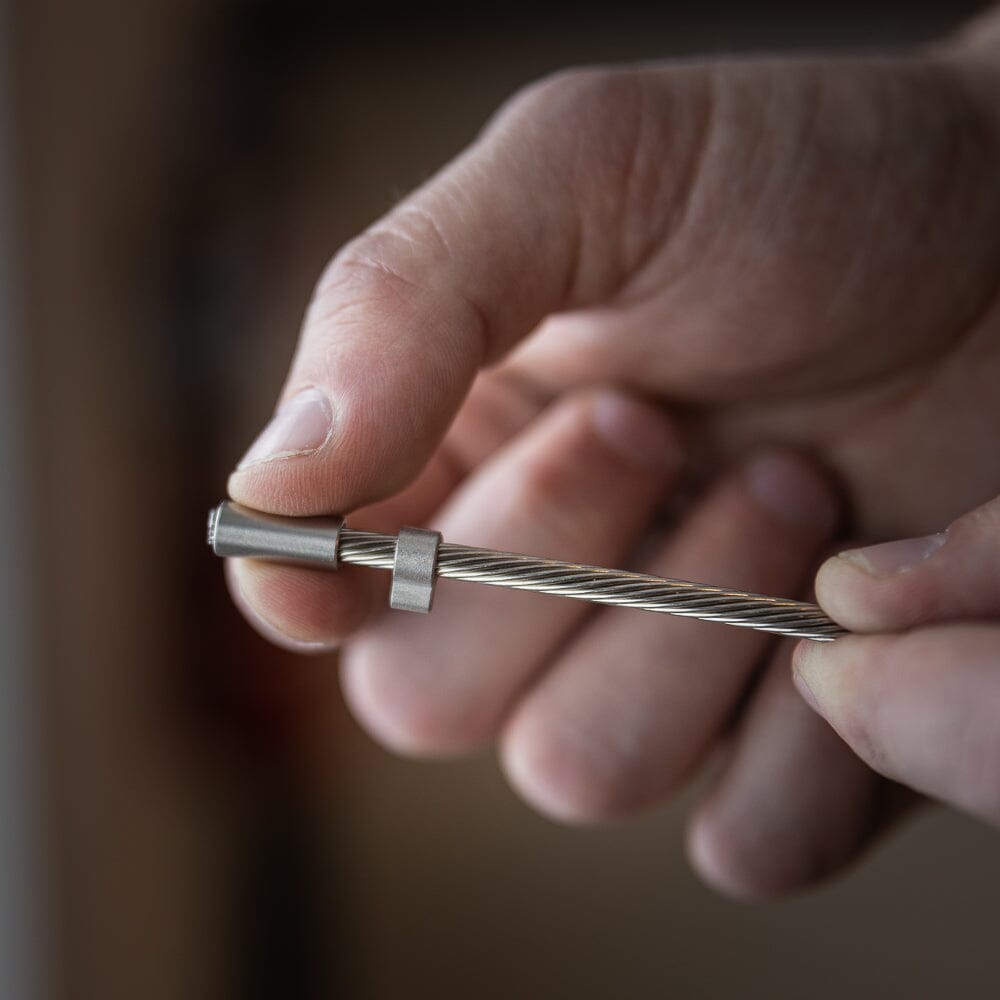

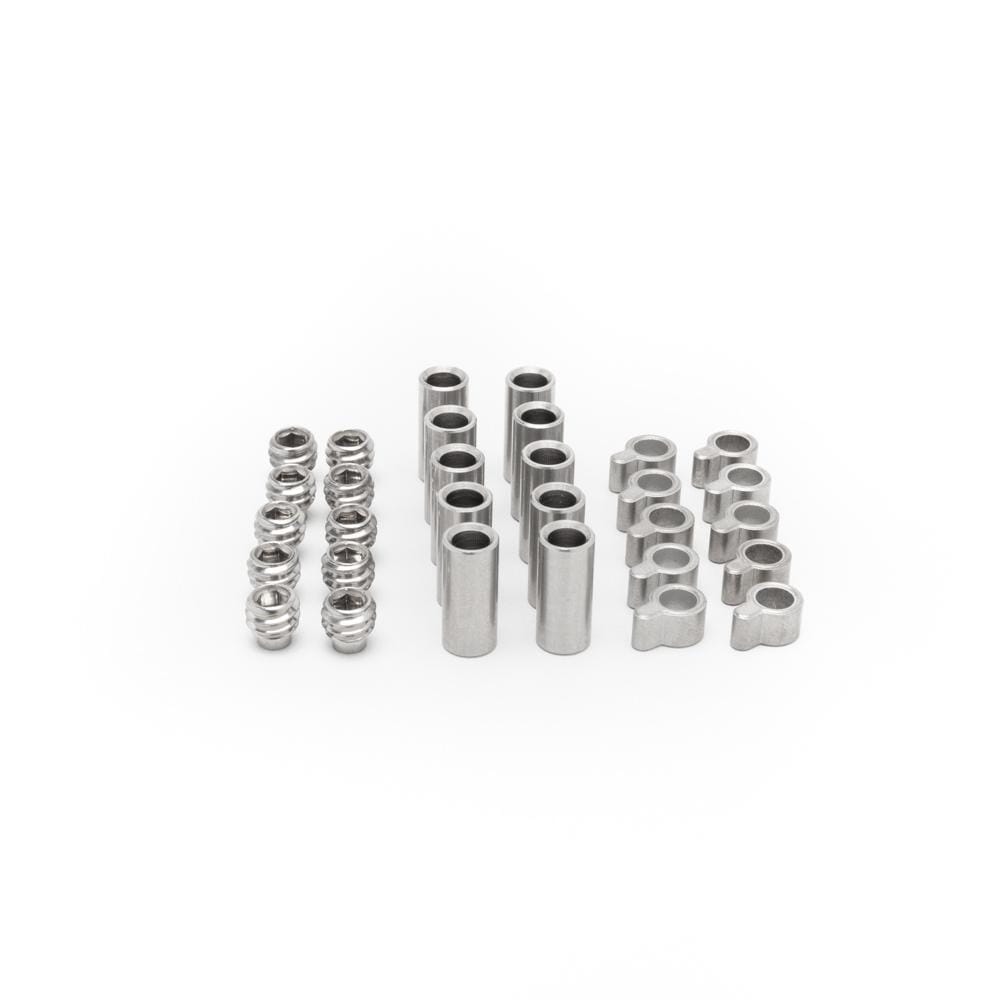

The Modified Manual Hydraulic Crimping Tool is used to securely fasten crimp sleeves to cable endpoints. This tool is a standard YYQ-300 Hydraulic Crimping Tool refitted specifically for use with the Cable Bullet cable rail system. It includes a custom hexagonal die made of hardened tool steel, designed to crimp Cable Bullet crimp sleeves. The YYQ-300 Hydraulic Crimping Tool has the necessary 16-ton pressure capacity to comfortably crimp the 316 stainless steel sleeves. The result is a clean, even hexagonal crimp along the length of the sleeve which guarantees each line will hold under pressure once tensioned. For ease of use, this package includes a stabilizer bracket for the crimper tool, which allows for convenient one-handed operation. To download instructions for best practices when using the crimper, see Crimper Tool: Use, Maintenance, & Troubleshooting.

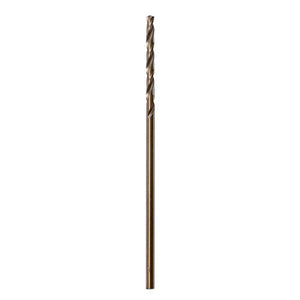

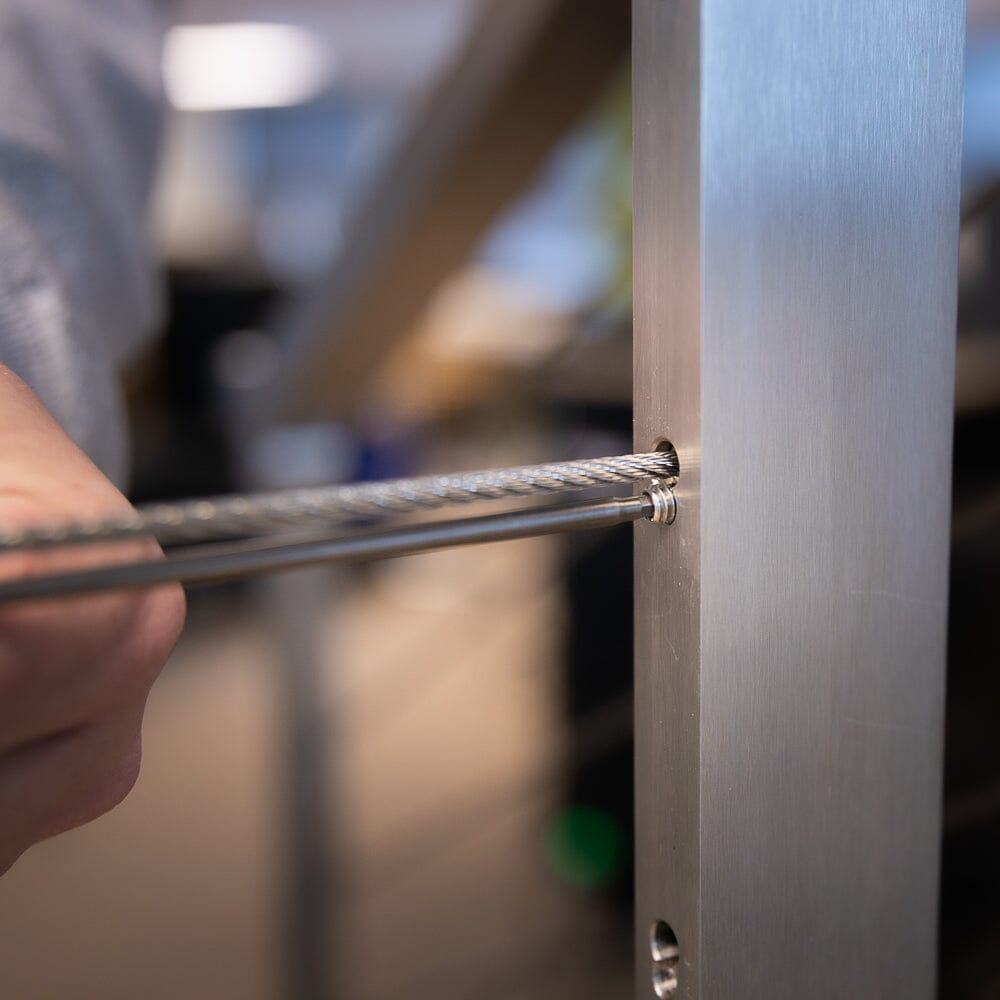

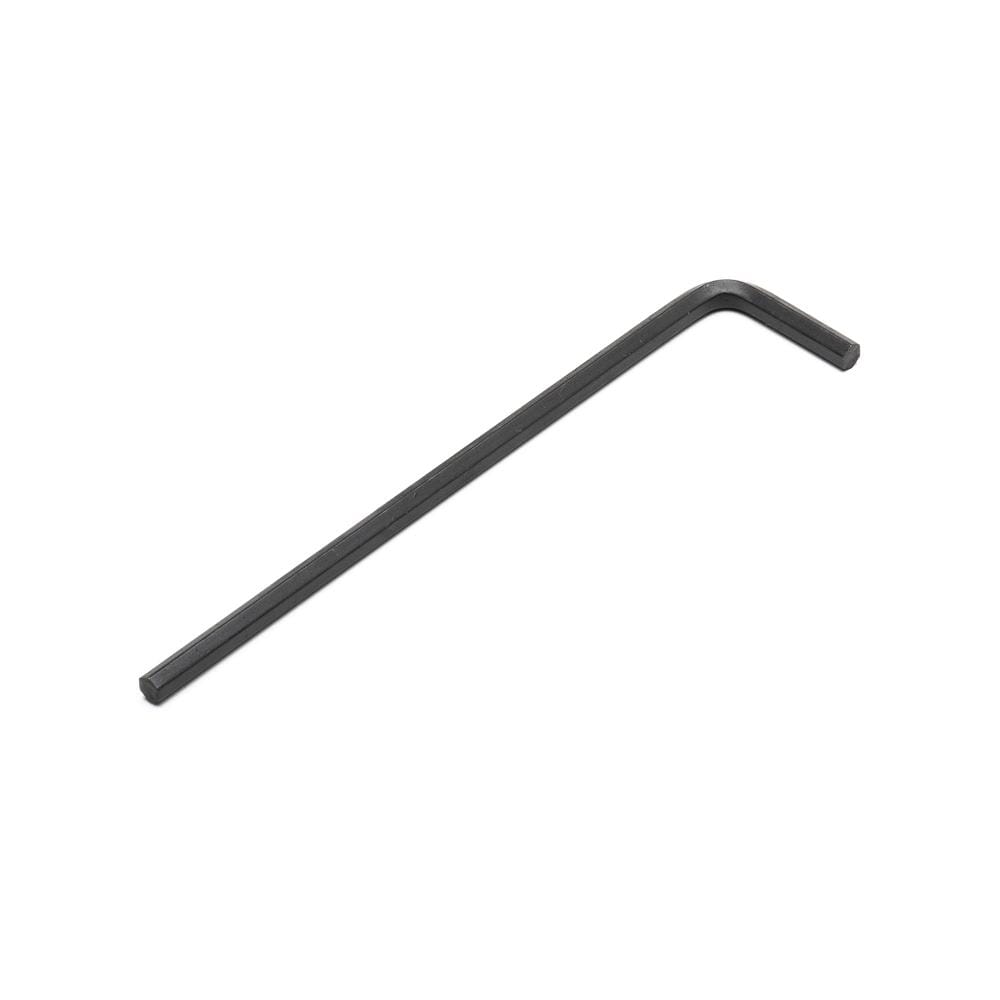

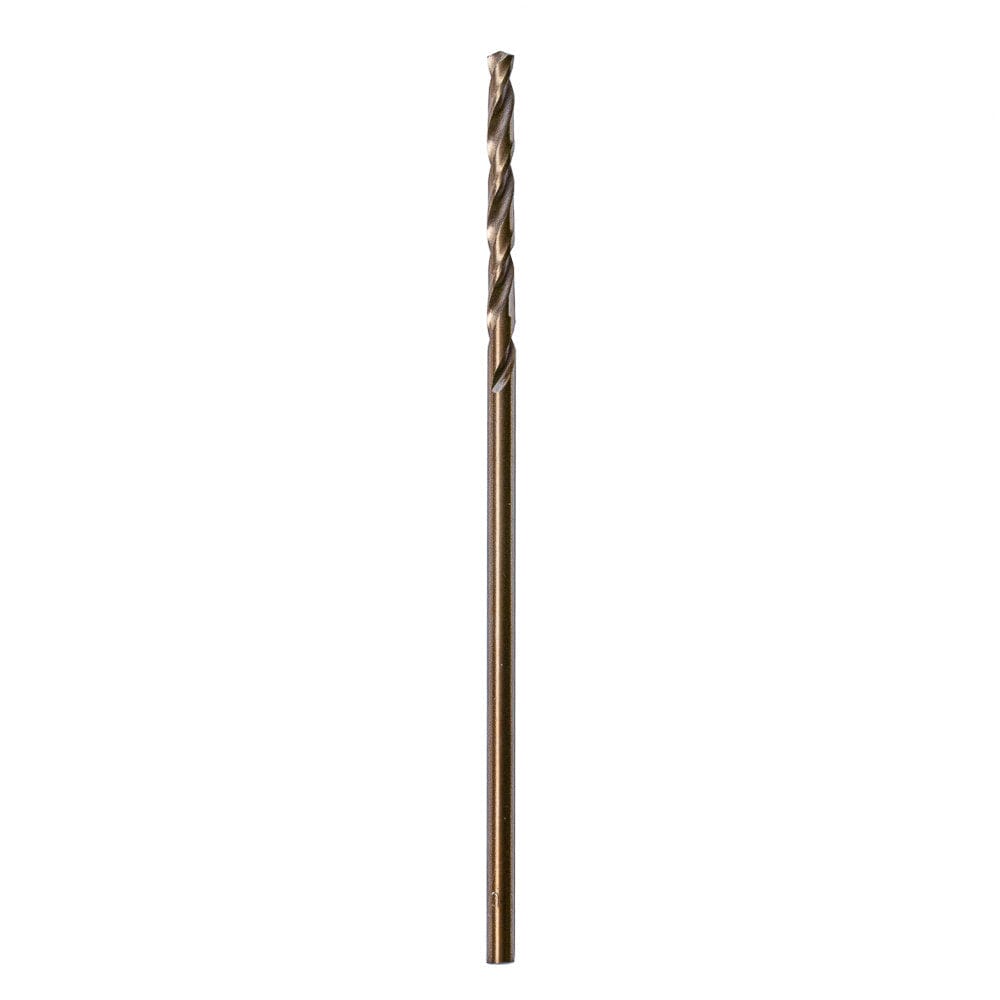

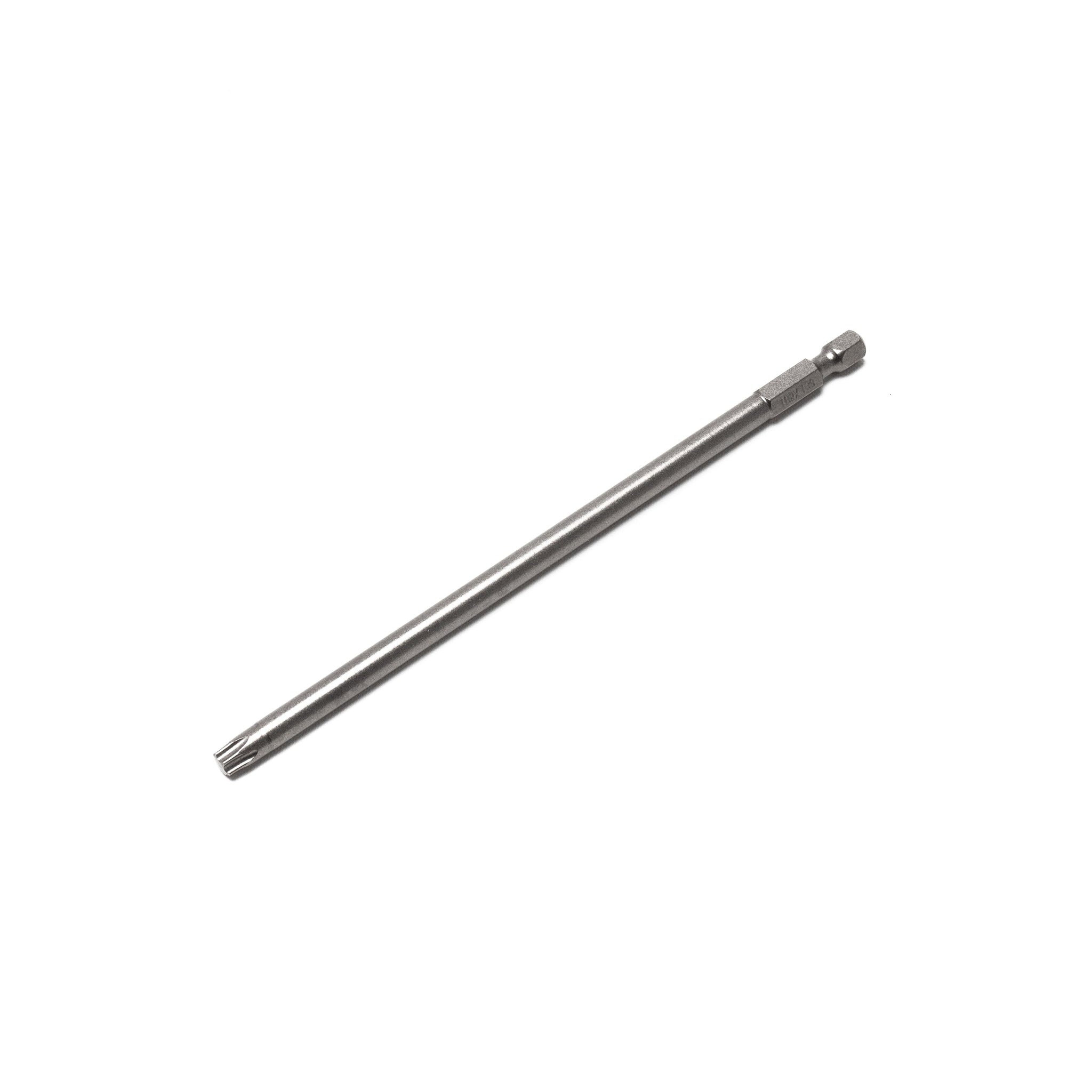

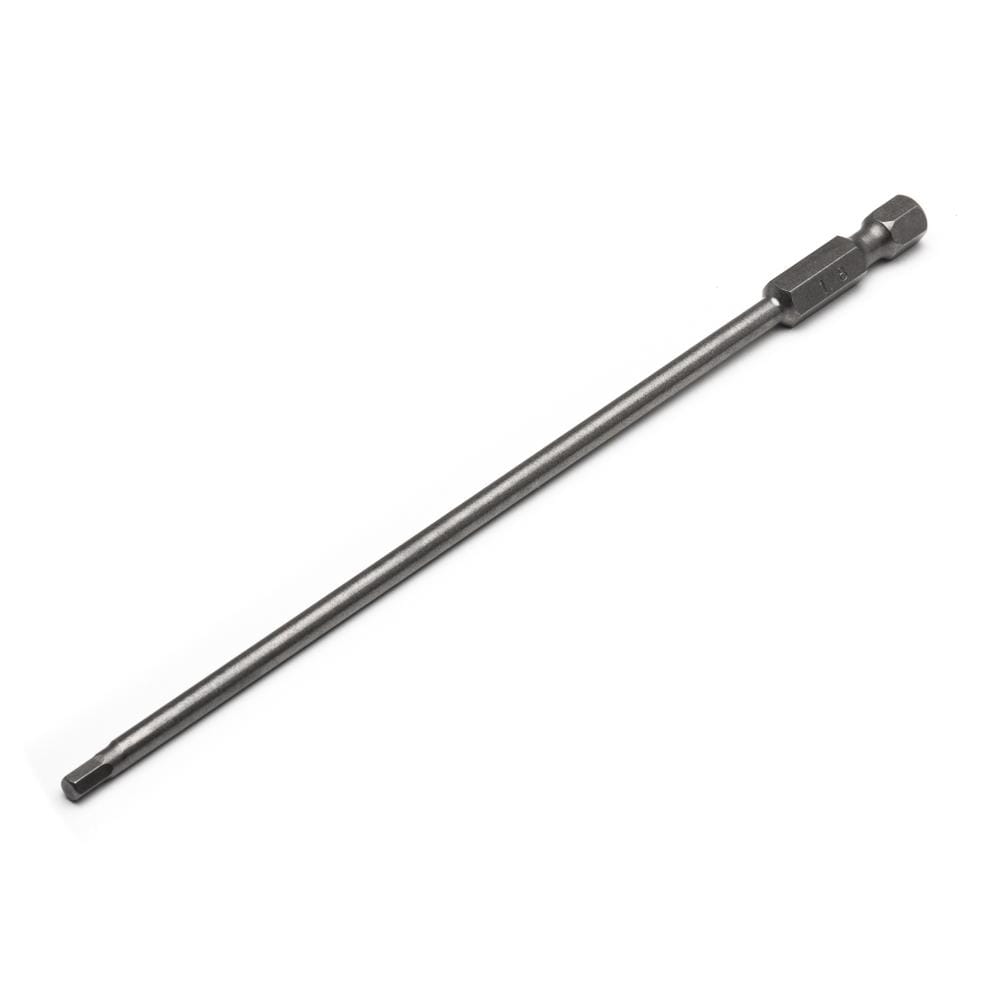

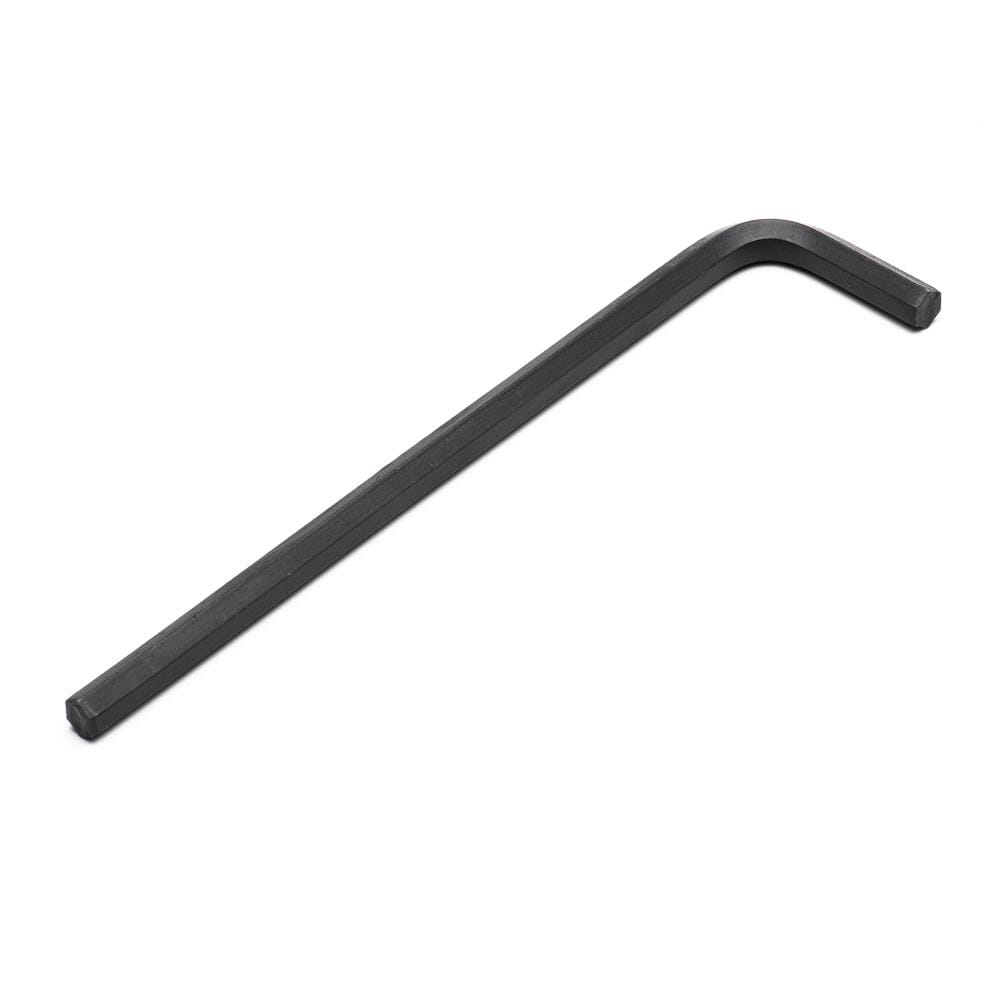

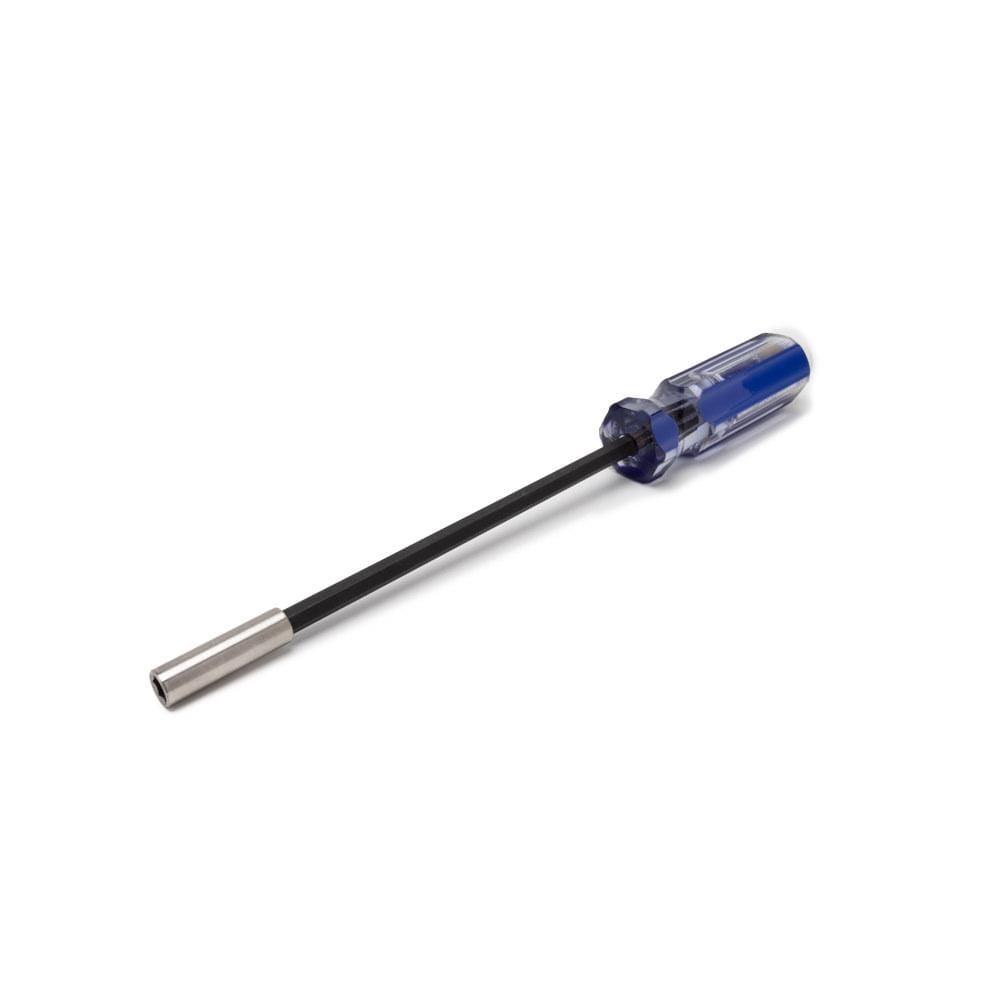

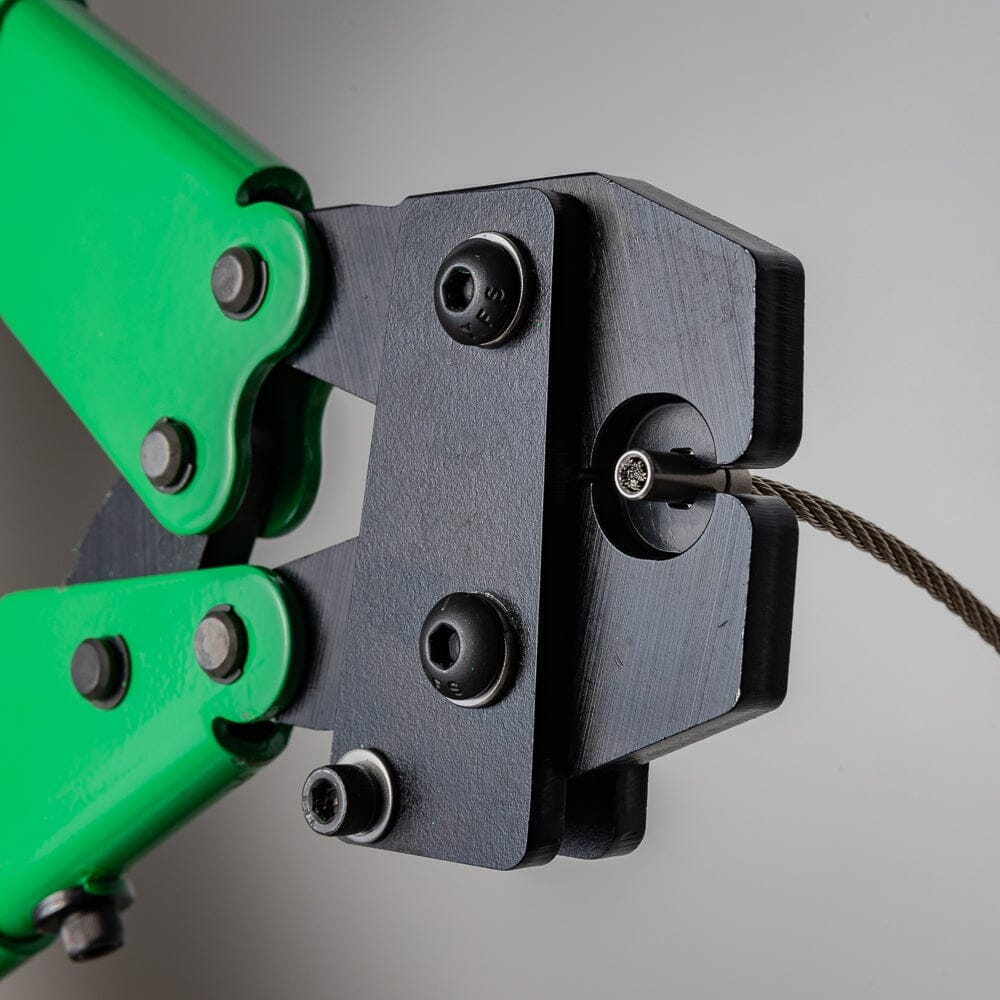

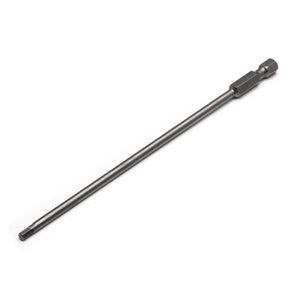

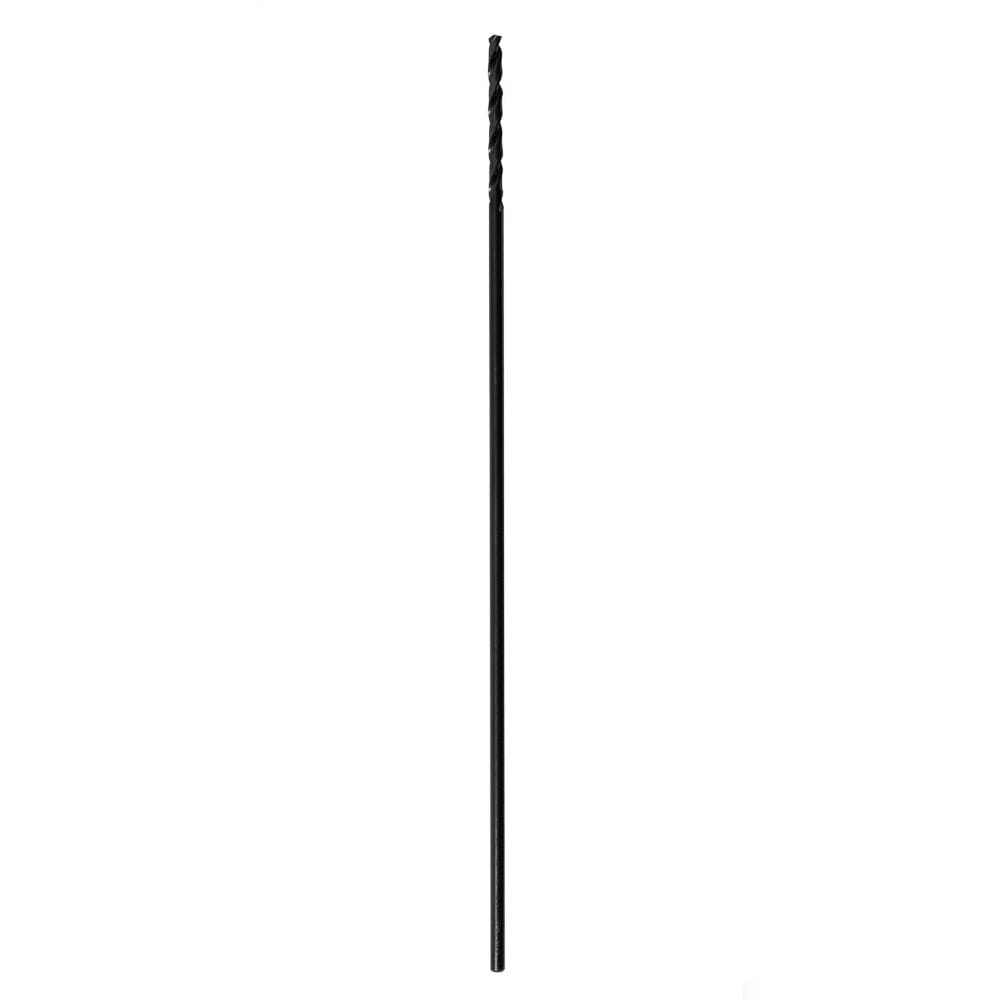

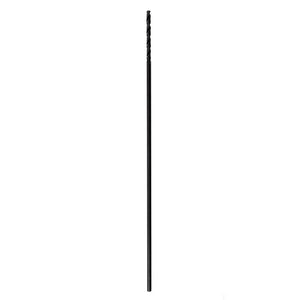

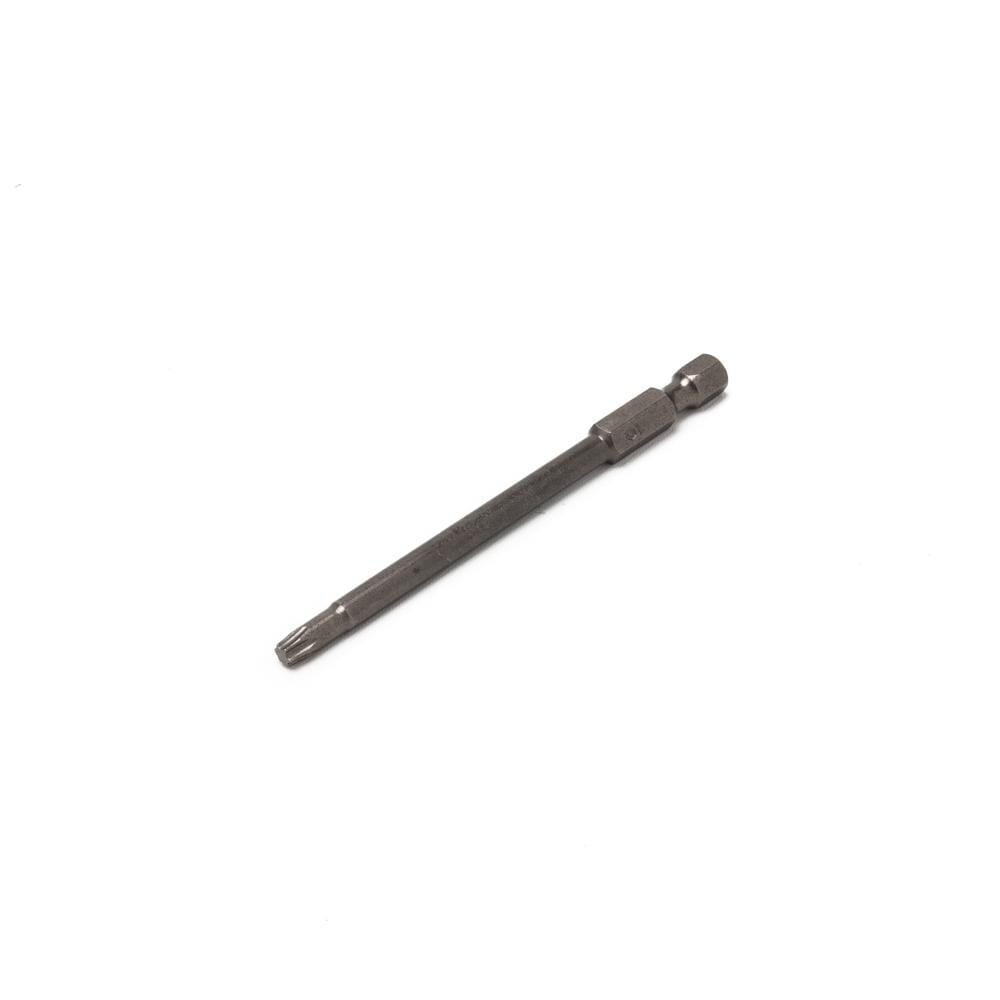

This kit also includes a pair of cable cutters designed for cutting 5/32" steel wire. The 3/16" Allen Wrench, T30 x 6" Star Driver Power Bit, and 3/16" x 12" drill bit are used during the post mounting process. Use the 1/8" Allen Wrench or 6" Hex Socket Head Power Bit with the Magnetic Multi-Bit Screw Driver to advance the set screws that tension each cable run. PLEASE NOTE: The set screws that tension each cable should be advanced by hand, not with a drill/impact driver.

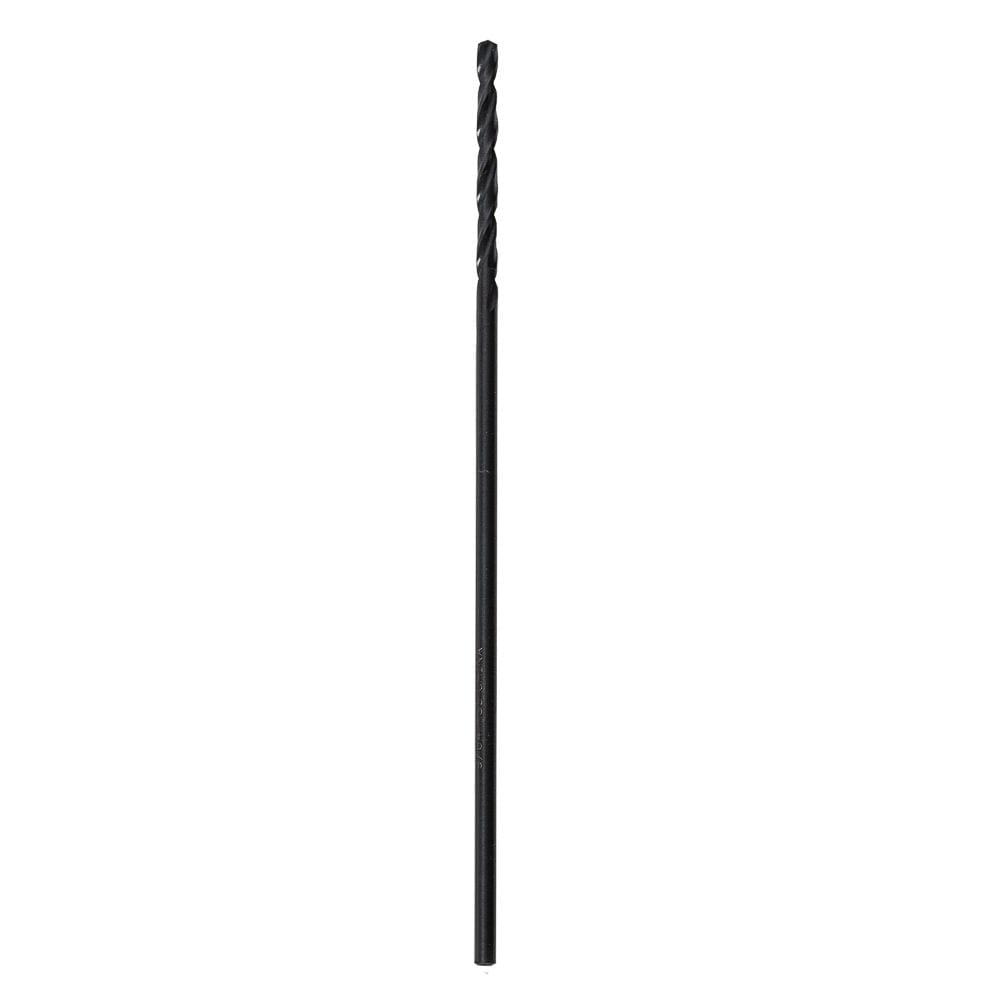

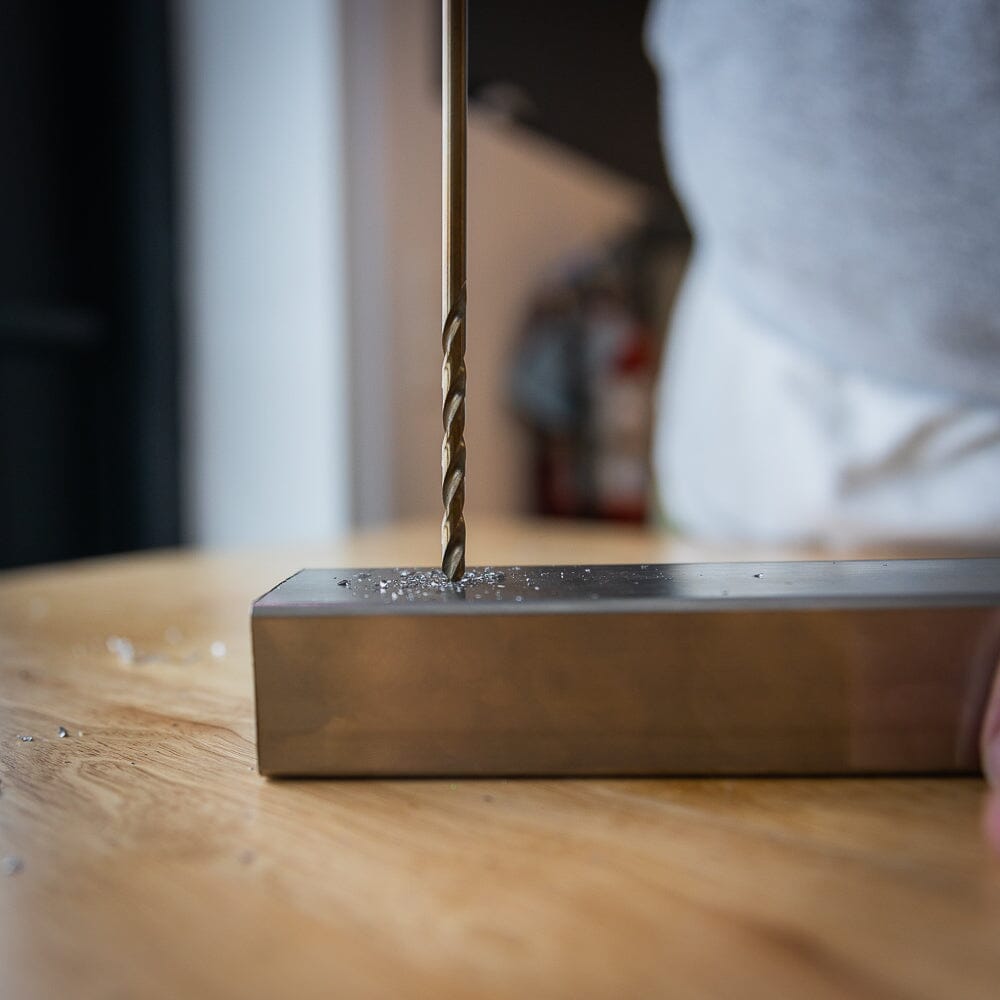

On Venture series railing, the T20 X 3-1/2" Star Drive Power Bit, 3/16" x 6" and 9/64" drill bits are used to install stainless steel handrail.

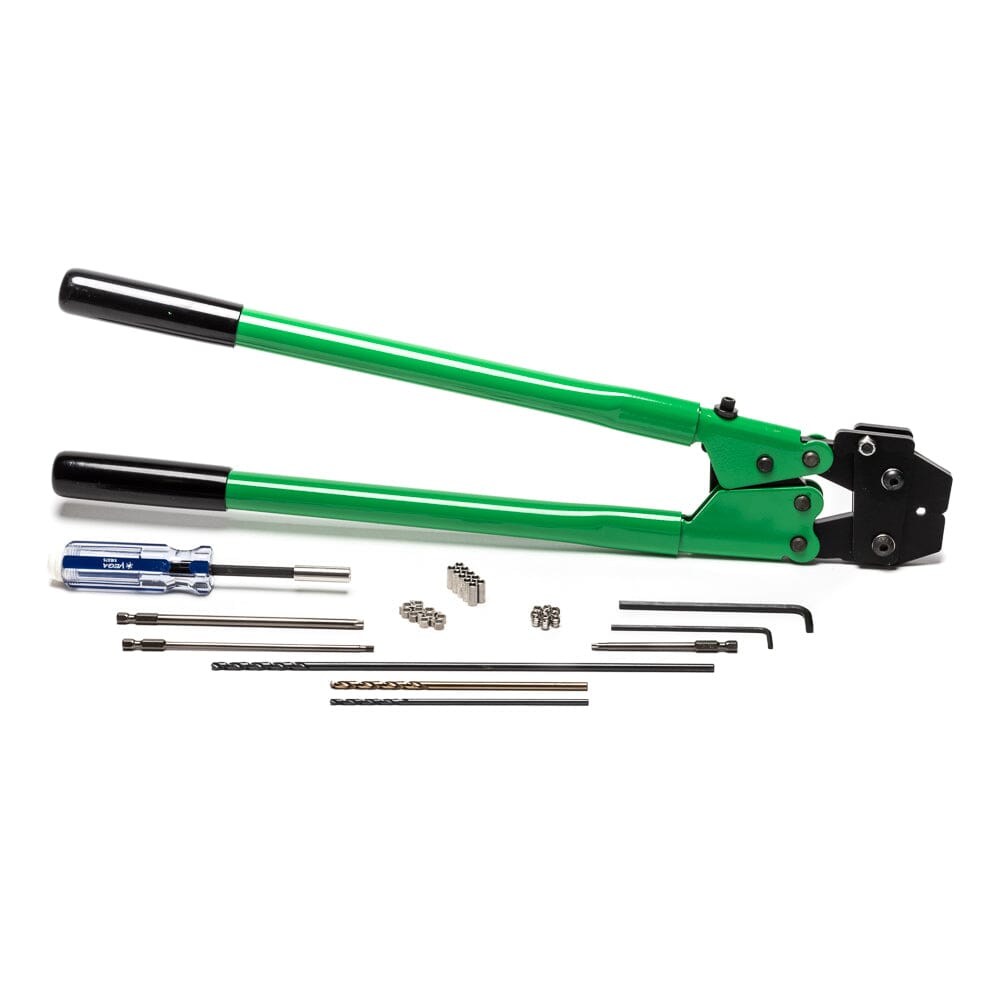

Each installation kit includes:
