Black Cable Spacer Bar

Spacer Bars are typically spaced every 4 feet between supporting posts. E.g., post, 4 feet, Spacer Bar, 4 feet, and another post. Spacer Bars only support the cables, and for cable railing projects you need both cable and handrail support.

Spacer Bars are crafted from corrosion-resistant and durable T316 stainless steel or 6061-T6 black anodized aluminum.

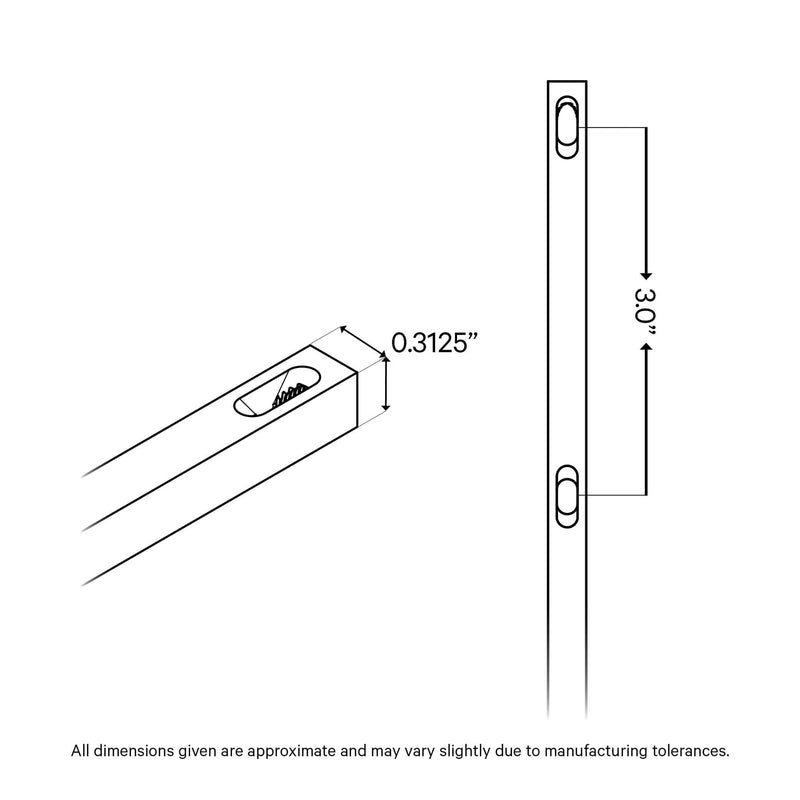

No, Spacer Bars are not suitable for use with cables spaced 4” apart. The design will only allow for you to space your cables every 3”—the optimal cable spacing to pass building codes.

Fixed Spacer Bars add some additional cable support but are not a replacement for line (or pass-through) posts. A Fixed Spacer Bar provides enough cable support for roughly one extra foot of allowable spacing between posts—but it will not provide any additional support for your handrail.

Spacer Bars need to be installed at the same time cables are run. The cable pass-through channels within the Spacer Bar are not large enough to allow the crimped cable to pass through. For this reason, you must run all of your cable through the Spacer Bar before making your final cable crimp and tensioning your cables.

Yes, Floating and Fixed Spacer Bars can be installed on both level and sloped runs. The installation process and cable deflection support will be the same for each application.

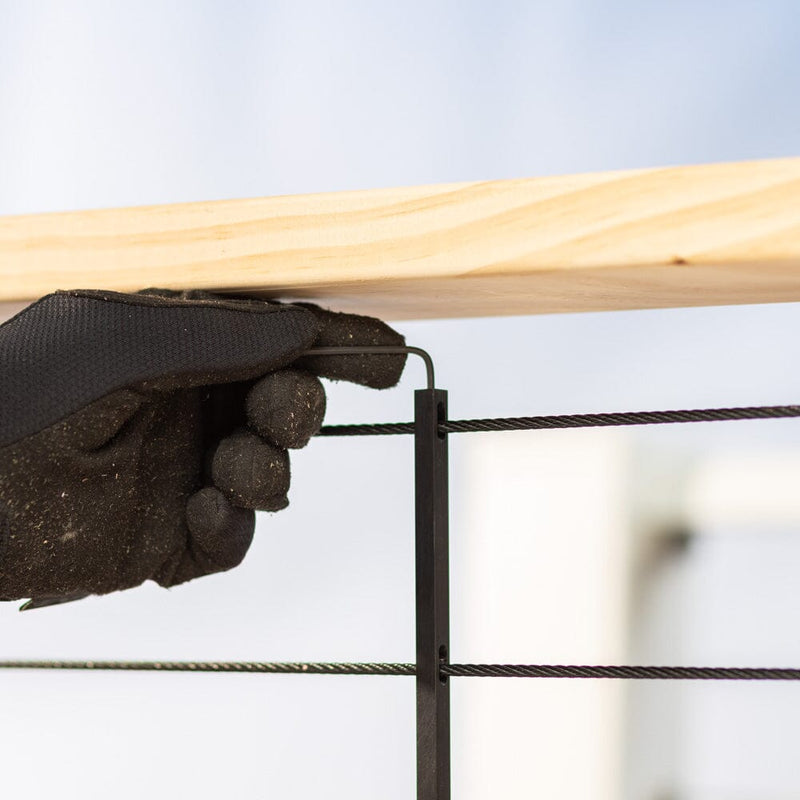

Our Floating Spacer Bars come with (2) set screws—one for the top and bottom cable. If you advance these screws, the Spacer Bars will remain in place and won’t shift unless the screws are loosened, allowing you to place your Spacer Bar where you want, and lock it in place.

Our black Spacer Bars are made from 6061-T6 anodized aluminum, delivering a sleek, glossy finish with exceptional durability.

Level III anodizing, or Type III hardcoat anodizing, is a process that creates a thick, highly wear-resistant, and corrosion-resistant oxide layer on aluminum. This is achieved through an electrochemical process that converts the aluminum surface into aluminum oxide using sulfuric acid and a controlled electrical current.

Cleaning anodized components is easy.

Use a Neutral Cleaner: Use mild dish soap or detergent with a pH between 6 and 8. Avoid acidic or alkaline cleaners, as they can damage the anodized coating.

Test a Small Area First: Before full application, clean a small, inconspicuous spot to ensure the cleaner doesn't cause discoloration or damage.

Clean Thoroughly and Rinse: Use a soft sponge or non-scratch cloth to clean the surface, ensuring all areas are addressed to prevent contaminant buildup. After cleaning, rinse thoroughly with water to remove any residue.

The Type III anodized aluminum finish can last over 20 years, depending on environmental conditions and wear. Coastal and high-UV environments may accelerate wear compared to inland or interior applications.
Our anodized finish has been tested to the equivalent of 8 years of UV exposure with excellent color fastness to maintain its appearance.
