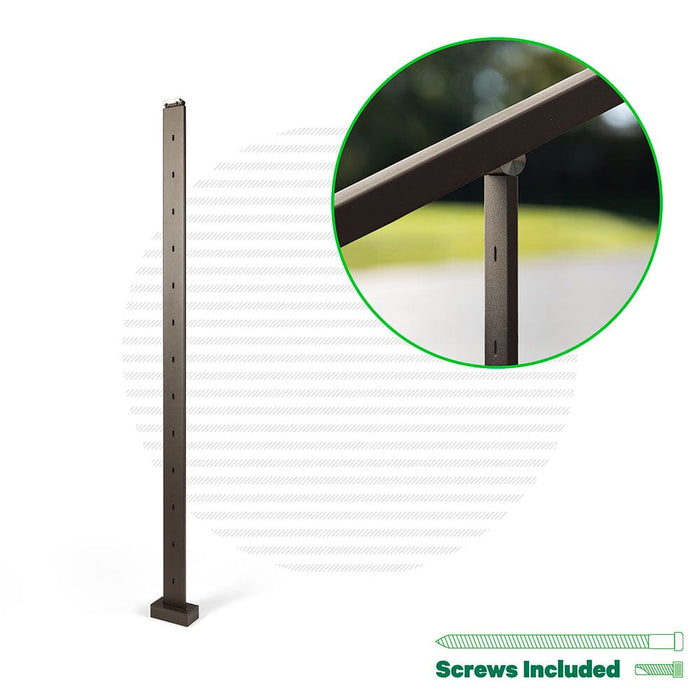

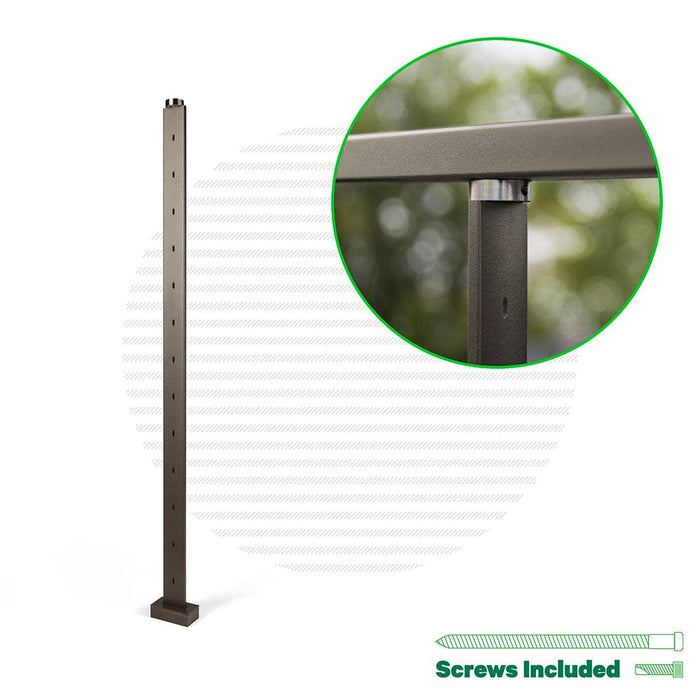

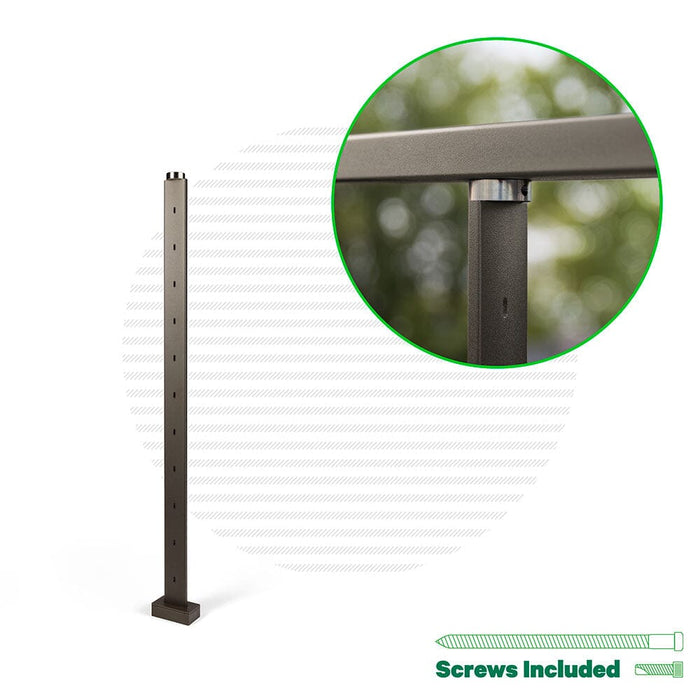

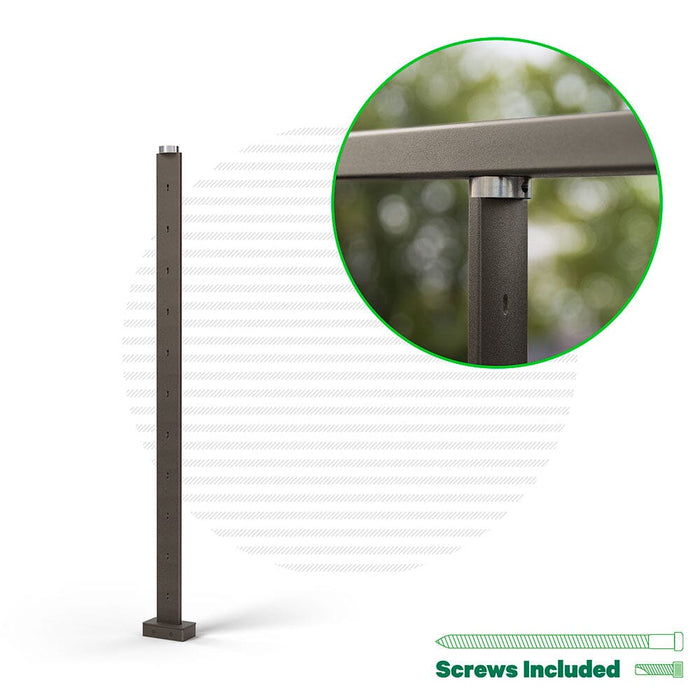

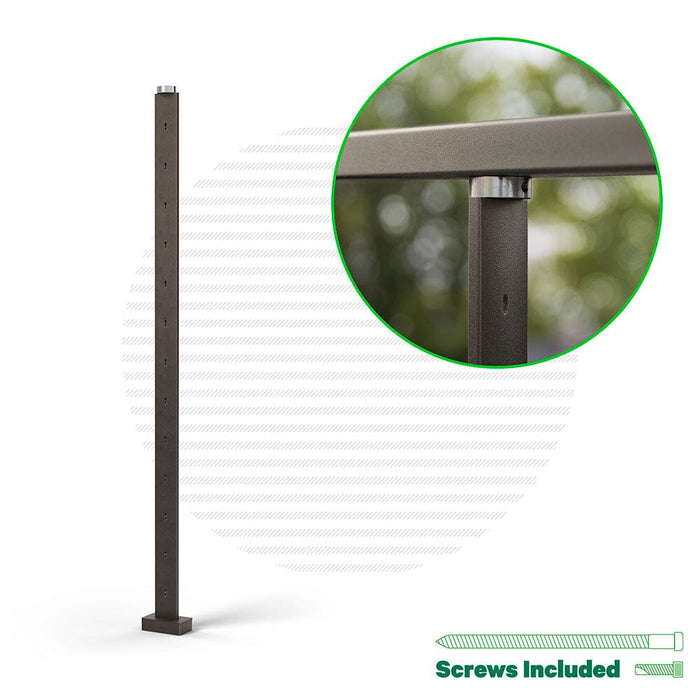

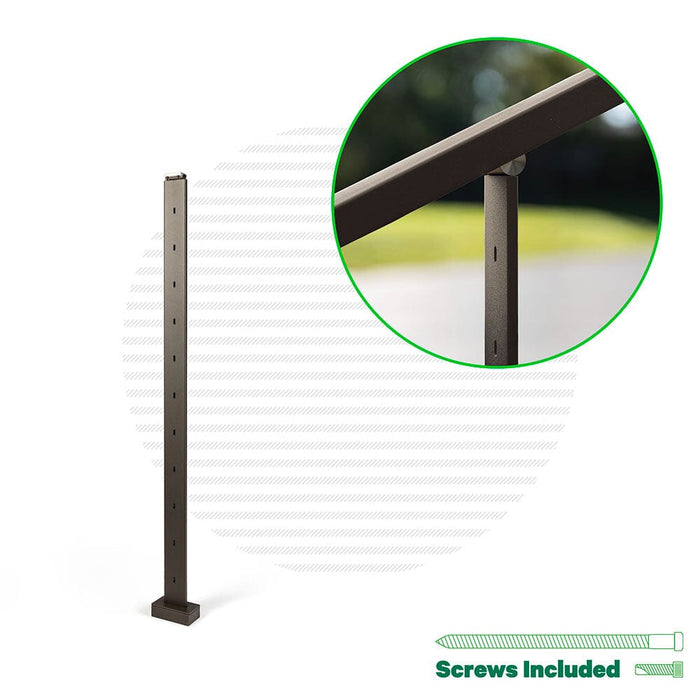

The Cable Bullet line post is a sleek, surface-mount, structural pass-through post, designed to support both your cables and top rail, with the smallest visual footprint possible.
Intermediate line posts are made from solid T6061 tempered aluminum for maximum yield strength. Each post includes pre-drilled cable pass-through holes every 3 inches on center, optimally sized for use with 5/32" diameter cable (max.). The elongated, tapered hole design offers the necessary support on level runs, while still allowing the cable to pass through without kinking along sloped spans.
Combine these posts with Signature series tensioning posts, or add them as infill for custom wood railing. Use cable spacer bars to maximize the view from your deck, patio, or stairway.
The slim 3/8-inch profile offers nearly zero obstruction to your view. Top mount intermediates feature a clean, press-fit base design (no ugly welds!) and matching base cover plate to hide the leveling screws.
For simple, aesthetic results, each post features tapered, elongated holes for cables to pass through seamlessly. Use on both straight and angled runs without kinking the cables.
You won't have to worry about the strength of your railing again! Each line post is machined from high-quality aluminum and provides structural support for your top rail.

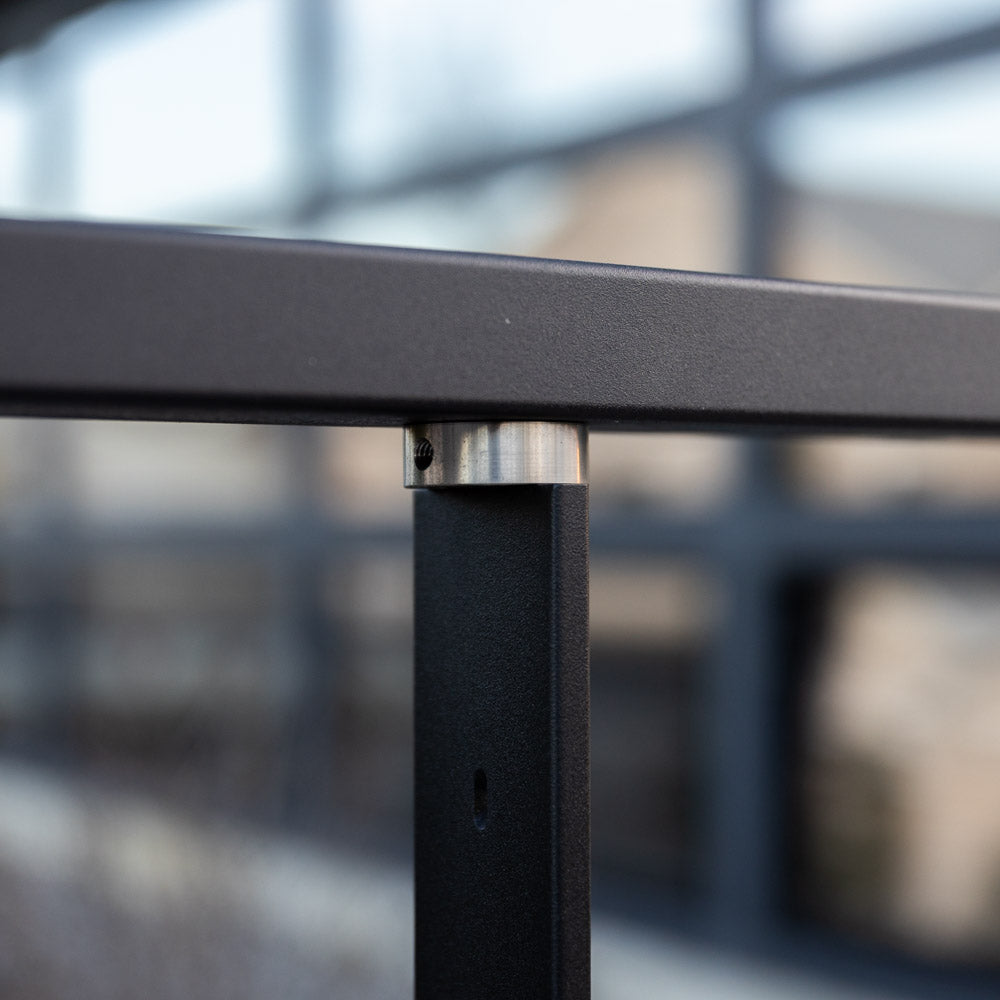

All components of the Signature series railing are proudly designed and made in the USA, including the aluminum post body and machined stainless steel top.
Each Signature series line post includes the following components:
For detailed installation instructions and setup guides, see the Helpful Guides & Resources list on this page.
PLEASE NOTE: Aluminum posts and handrail are NOT suitable for use in exterior coastal applications. Signature series railing is designed for inland exterior and interior projects. Exposure to salt will cause accelerated oxidation and galvanic corrosion between aluminum and stainless components.
How to Install Signature Series Top Mount Cable Rail Posts
Web Guide >
Setup Guide: Signature Series Top Mount Posts
Download PDF >
Stair Rail Design: Post Layout & Handrail Options
Download PDF >
|Application||Recommended for interior & inland exterior projects|
|Material||T6061 aluminum body, T304 SS top|

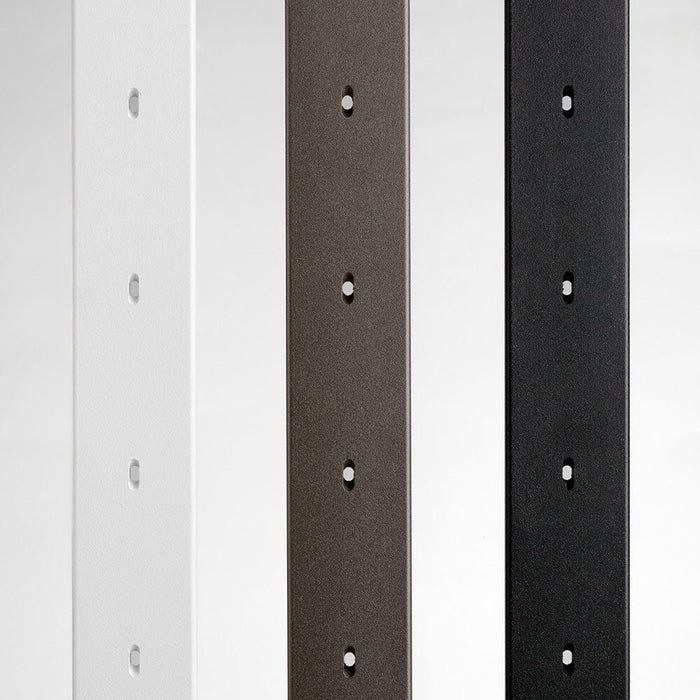

|Color Option 1||Flat Black Fine Texture, AR400 Jet Black Tex Architectural Grade Powder Coat*|
|Color Option 2||Flat White Fine Texture, Architectural Grade Powder Coat*|
|Post Height (No Top)||35-1/2" (11 cables) | 41-1/2" (13 cables)|
|Post Height (With Modern Top)||36" | 42"|
|Post Body||3/8" x 2"|
|Post Base||2" x 3-1/2"|
||The line post modern top can accommodate stairs with a pitch/slope up to 38-degrees.|
*Powder coat colors can vary slightly by production run. Recommended for use in architectural applications where enhanced levels of exterior weatherability are required. This product meets requirements for AAMA 2604 as per the American Architectural Manufacturers Association.
