V2-P-ES-42-TM-316
In Stock - Ships in 1–3 business days.
Free shipping on orders over $1,999* Full Details >
Say goodbye to ugly, bulky turnbuckles and hello to a cleaner, sleeker view! Upgrade your railing with the absolute best in modern design that tensions cables completely from the inside of the post. No external hardware needed!
Enjoy the best view possible with the least amount of hardware. Venture series railing is designed to offer maximum strength, with minimal visual clutter. Our patented Cable Bullet tensioning mechanism has been machined directly into solid stainless steel columns, making additional cable tensioners unnecessary! Tensioned cables disappear into the post without any bulky or industrial hardware. Extend your runs with Venture series structural intermediate posts and Cable Bullet spacer bars.
Featuring clean edges, a slim profile, and modern design, Venture series railing is certain to impress and add beauty to any room or deck.

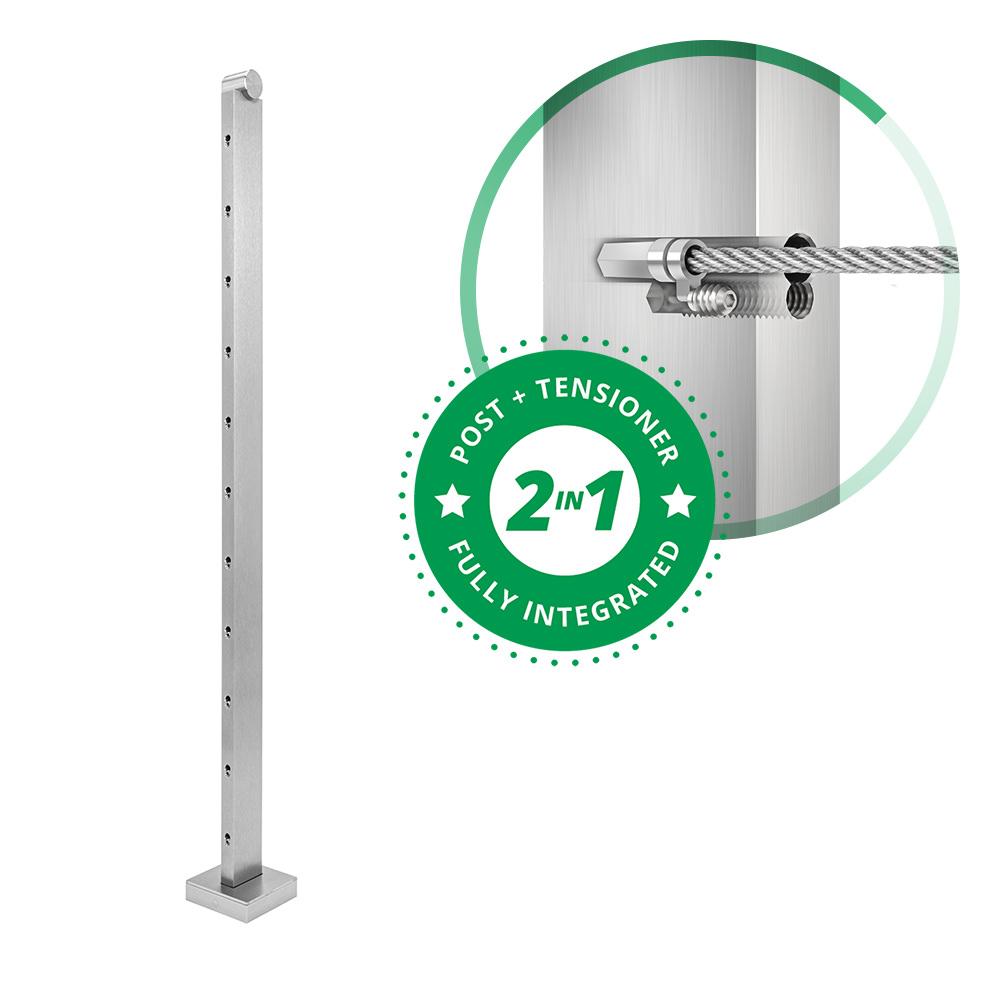

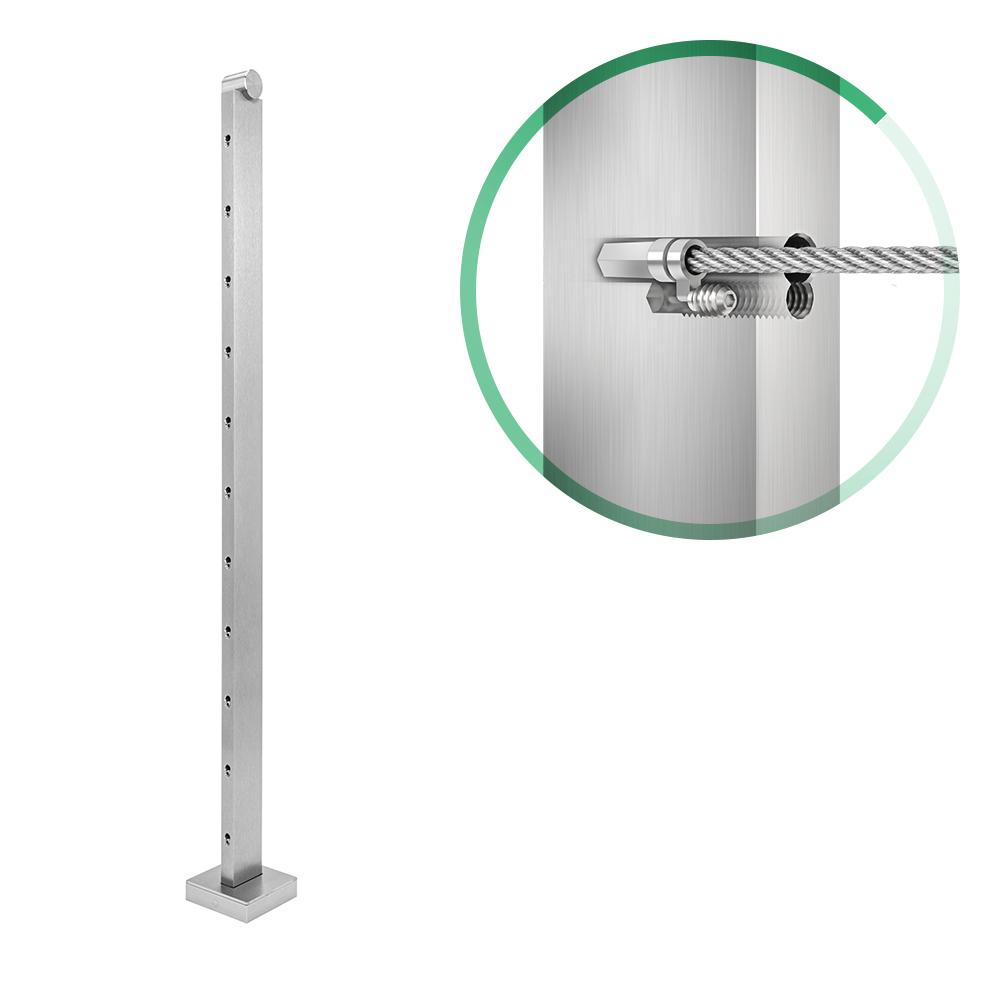

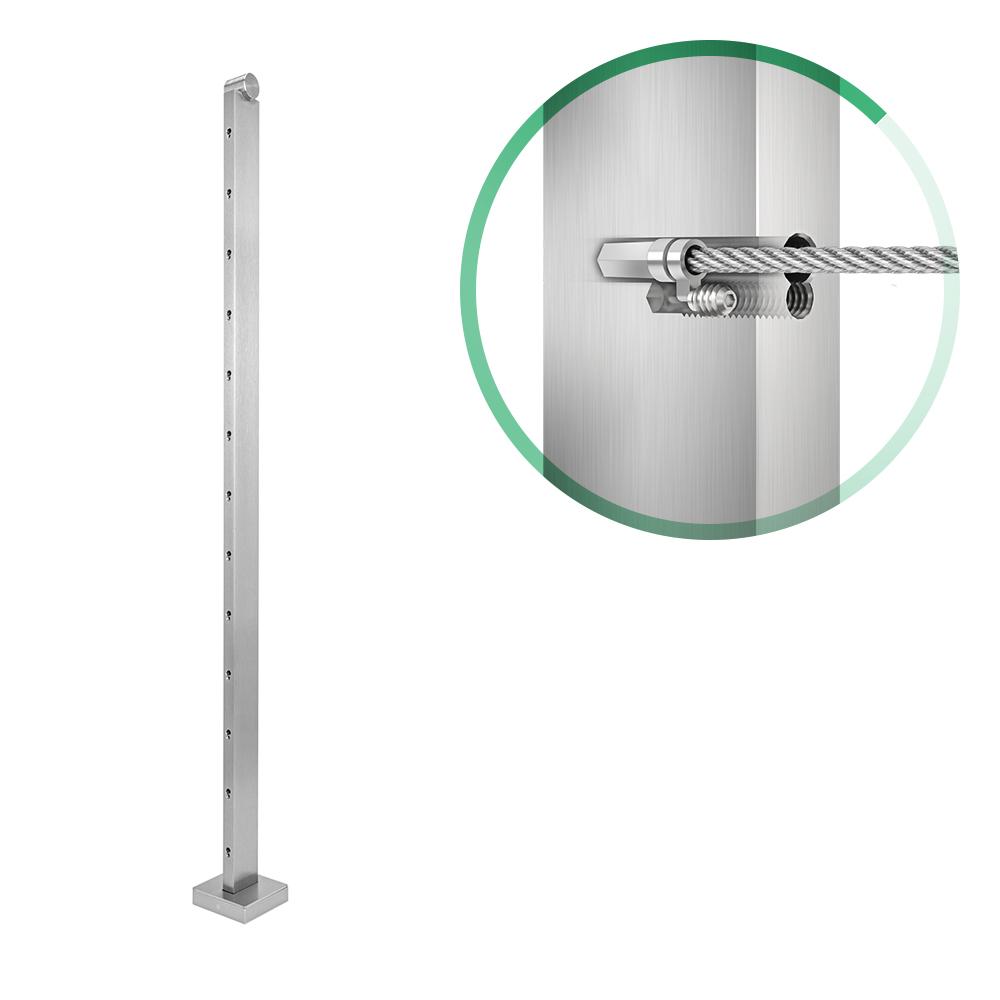

The patented cable tensioning mechanism is built into each post. No cable rail tensioners required - for lower costs and efficient installation!
Every post includes a matching, flush-mount base cover plate to conceal the four mounting screws.
Industry-leading slim 2 x 3/4-inch profile with minimal obstruction to your view. No more bulky turnbuckles or extra hardware!
Each patent-pending handrail mounting bracket is machined from solid, T316 marine-grade stainless steel. Mount any handrail with a flat underside on both level and sloping runs.
Heavy-duty solid T316 marine grade stainless steel construction for maximum strength and durability. Venture series posts are the ideal choice for lasting beauty in harsh coastal environments.
Level your posts on hard, irregular surfaces, like concrete or stone, with the four set screws in the base of each post.
Post columns are press-fit and pinned to the base, side-stepping the need for any unsightly welds.
All components of Venture series posts are proudly designed and made in the USA.
The following supplies are required for most installations, but quantities and specifics will vary by project. The items listed below are sold separately.
For detailed installation instructions and setup guides, see the Helpful Guides & Resources list on this page.
Overall costs will vary widely by project design and layout. The average cost per foot will fluctuate based on span lengths, rail height, and handrail selection. A base estimate for projects using Venture series railing:
*Average calculation is based on a standard 12' x 24' deck, with approximately 50'-60' of 36" high railing, 6' average post spacing with spacer bar kits. Tools not included.
How to Install Venture Series Top Mount Cable Rail Posts
Web Guide >
Setup Guide: Venture Series Top Mount Posts
Download PDF >
Stair Rail Design: Post Layout & Handrail Options
Download PDF >
| Application | Recommended for interior & exterior (coastal or inland) projects |
|---|---|
| Material | Type 316 stainless steel |
| Finish | Brushed |
| Coating | None |
| Overall Height | 36 or 42 inches tall |
| Max. Span | 20 feet between end posts |
| Cable Spacing | 3 inches |
| Cable Support | 42 – 48 inches* |
| Cable Size | 5/32 inch thick |
| Cable Braid | 7x7 or 1x19 style |
| Post-Top | 1-1/4" Diameter Cylinder, 1-3/8" W/L |
| Post Body | 1-15/16" W x 3/4" D |
| Post Base | 3-1/2" W x 3-1/2" D |
*Add structural intermediate posts or cable spacer bars every 42-48 inches to minimize cable deflection.
